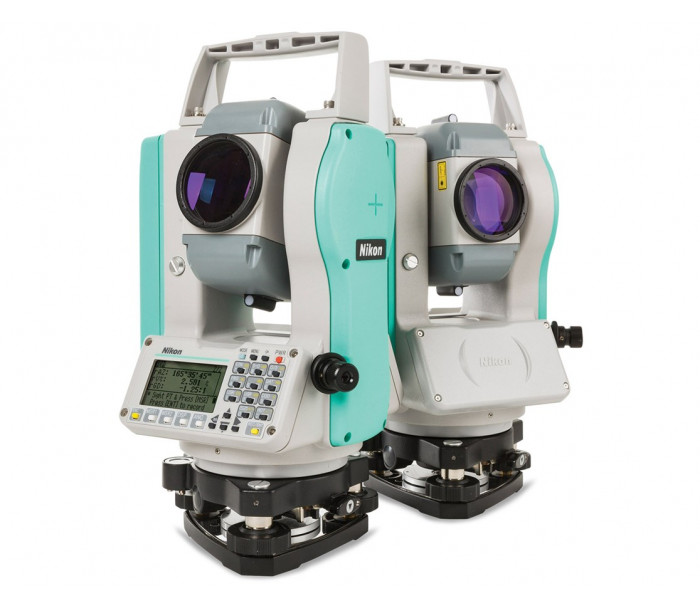

Nikon HQA46730 K Series Total Station

Qty :

0 reviews

Write a review

Specifications for Nikon HQA46730 K Series Total Station

General
Weight	11 lb
Dimensions	13.1 in x 6.6 in x 6.8 in
Protection Class	IP55
Internal Memory	50,000 records

Angle Measurement
Measuring Method/Reading System	Prism
Detection Method	Photoelectric detection by incremental encoder
Minimum Reading	.1/5/10” (0.2/1/2 mgon)
Accuracy	5“
Diameter of Circle	3.46 in

Distance Measurement
EDM Accuracy (Precision)	±(2+2 ppm × D) mm

Tilt Sensor/Compensator
Range	.±3‘
Type	Dual axis
Method	Liquid-electric detection

Battery/Power
Power Source	Li-on battery
Battery Life	Upto 22 hours

Optical Plummet
Image	Erect
Magnification	3X
Field of View	5°
Focus Range	0.5 m (1.6 ft) to 8

Level
Circular Bubble Vial	10‘/2 mm

Telescope
Length of Tube	4.9 in
Image	Erect
Diameter of Objective Lens (Aperture)	1.77in
Magnification	30× (18x/36x with optional eyepieces)
Field of View	1°20
Resolving Power	. 3”
Minimum Focus Distance	4.9 ft

Display and Keypad
Type	Single LCD display
Touchscreen	No
Backlight	Yes
Pixels	128 × 64 pixel

Temperature
Operating	–4 °F to +122 °F

Measurement Range (under fair weather conditions)
Single Prism	13,123 ft
No Prism	n/a

Interface
Bluetooth	Integrated
